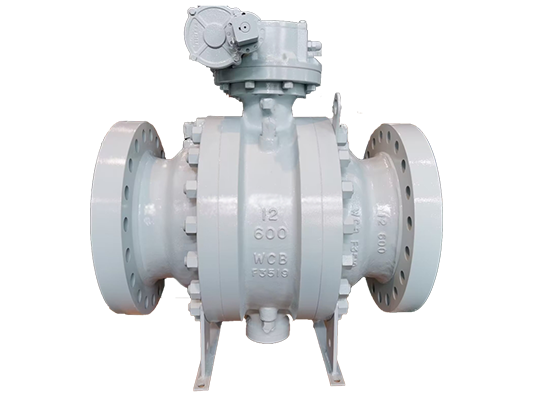

LYV®️ Trunnion mounted ball valve as a high-performance product that meets international standards like API-6A, API-6D, ASME-B16.34, ISO-17292 and more. LYV®️ Trunnion mounted ball valve has obtained API-6FA fire certification, which prove product has capacity to use for various fire safe requested applications. LYV®️ as a manufacturer to produce trunnion mounted ball valve can manufacturing NPS 2” to NPS 48” trunnion mounted ball valve, maximum pressure rating can reach to 2500LB. Furthermore, LYV®️ has conditions and experience to produce low-temperature trunnion mounted ball valve. Contact our sales for more information.
Specifications
Size Range:
NPS 2”-48”; DN50-DN1000
|
Nominal Pressure:
150LB-2500LB; PN10-PN420
|
Temperature Range:
-196℃~825℃(depends on design and material)
|
End Connections:
Flange; Butt-weld.
|
Body Materials:
ASTM A216 WCB/WCC; ASTM A352 LCB/LCC; ASTM A351 CF8/CF8M/CF3/CF3M/CF8C; ASTM A890 4A/5A/6A;
ASTM A105; ASTM A182 F304/F316/F304L/F316L
|
Ball Materials:
ASTM A105N+ENP/A105N+TCC; ASTM A182 F304/F316/F304L/F316L; ASTM A182 F347/F51/F53/F55
|
Seat Materials:
PTFE/RPTFE/FPM/PEEK; 304/316+STL/INCONEL
|
Stem Materials:
ASTM A182 F6A; ASTM A182 F304/F316/F304L/F316L; 17-4PH; ASTM A182 F51/F53/F55
|
Design & Manufacture Standard:
API 6D
|
Face-to-face Standard:
ASME B16.10/ EN558-1
|
End Connection Standard:
ASME B16.5/ ASME B16.25
|
Test & Inspection Standard:
API 598
|
Features
■ Soft or metal seat available
■ Solid ball
■ RF,RTJ,BW Connection face
■ Two- or three- piece body
■ Bi-directional tight shut-off
■ Zero leakage
■ Double block & bleed (DBB) / Double Isolation & Bleed (DIB)
■ Fire-safe protection.
■ Low operating torque design
■ Anti-blowout stem design
What is Trunnion ball valve?
The trunnion ball valve is a form of quarter-turn valve which uses a hollow, perforated and fixed/supported ball to control flow through it. The ball is con-strained by mounted bearings and is only allowed to rotate.
How does it work(sealing)?
The line pressure drives the upstream seat against the stationary ball so that the line pressure forces the upstream seat onto the ball causing it to seal. The mechanical anchoring of the ball absorbs the thrust from the line pressure, preventing excess friction between the ball and seats, so even at full rated working pressure operating torque remains low.
Why choose LYV®️ valves?
We produce trunnion ball valve for over 30 years. The workshop covers 13000 square meters and own more than 50 advanced CNC machines. Our engineers & production team will make sure your order delivers with high-quality and fastest time. We also care about valve shipping. The valves will wrap by bubble pouches or paper to ensure the paint will not be damaged. We also fixed valve by plywood stick after we put valve into the box. The plywood case will be painted with necessary marking to make sure the valve will not be damaged during shipping.
Valva cu bilă montată pe trunnion
Dimensiuni externe și de conectare principale
Data
|
Revizuire
|
Umplut de
|
Verificat
|
Publică de
|
2024-aprilie-01 |
Prima problemă |
Sincer |
Lee |
Sincer |
NPS
|
DN
|
RF
|
Rtj
|
NOI
|
BB
|
PB
|
A
|
B
|
C
|
D
|
Greutate (kg)
|
Ff
|
150lb
|
2
|
50
|
178
|
190
|
216
|
51
|
51
|
152
|
105
|
100
|
153
|
19
|
3
|
80
|
203
|
216
|
283
|
51
|
77
|
191
|
105
|
100
|
153
|
34
|
4
|
100
|
229
|
241
|
305
|
102
|
102
|
229
|
200
|
160
|
230
|
35
|
6
|
150
|
394
|
406
|
457
|
152
|
152
|
279
|
250
|
185
|
305
|
145
|
8
|
200
|
457
|
470
|
521
|
203
|
203
|
343
|
278
|
222
|
390
|
245
|
10
|
250
|
533
|
546
|
559
|
254
|
254
|
406
|
323
|
280
|
467
|
400
|
12
|
300
|
610
|
622
|
635
|
305
|
305
|
483
|
340
|
303
|
540
|
700
|
14
|
350
|
686
|
698
|
762
|
337
|
337
|
535
|
375
|
330
|
607
|
950
|
16
|
400
|
762
|
775
|
838
|
387
|
387
|
595
|
410
|
355
|
675
|
1210
|
18
|
450
|
864
|
876
|
914
|
438
|
438
|
635
|
440
|
390
|
753
|
1700
|
20
|
500
|
914
|
927
|
991
|
489
|
489
|
700
|
495
|
430
|
845
|
2000
|
22
|
550
|
991
|
-
|
1092
|
540
|
540
|
750
|
525
|
475
|
930
|
2500
|
24
|
600
|
1067
|
1079
|
1143
|
591
|
591
|
815
|
585
|
520
|
1010
|
3200
|
26
|
650
|
1143
|
-
|
1245
|
635
|
635
|
870
|
630
|
560
|
1070
|
4200
|
28
|
700
|
1244
|
-
|
1347
|
686
|
686
|
925
|
645
|
650
|
1140
|
5300
|
30
|
750
|
1295
|
-
|
1397
|
736
|
736
|
985
|
690
|
700
|
1220
|
6500
|
32
|
800
|
1371
|
-
|
1524
|
781
|
781
|
1060
|
740
|
745
|
1310
|
7700
|
34
|
850
|
1473
|
-
|
1626
|
832
|
832
|
1110
|
760
|
775
|
1380
|
8800
|
36
|
900
|
1524
|
-
|
1728
|
876
|
876
|
1170
|
810
|
805
|
1440
|
9900
|
40
|
1000
|
1753
|
-
|
1956
|
978
|
978
|
1290
|
895
|
900
|
1610
|
12700
|
42
|
1050
|
1855
|
-
|
2083
|
1022
|
1022
|
1345
|
950
|
935
|
1683
|
15000
|
48
|
1200
|
2134
|
-
|
2388
|
1168
|
1168
|
1510
|
1095
|
1070
|
1930
|
18000
|
56
|
1400
|
2489
|
-
|
2489
|
1384
|
1384
|
1735
|
1300
|
1250
|
2273
|
34120
|
300lb
|
2
|
50
|
216
|
232
|
216
|
51
|
51
|
165
|
105
|
100
|
153
|
24
|
3
|
80
|
283
|
298
|
283
|
77
|
77
|
210
|
155
|
125
|
187
|
43
|
4
|
100
|
305
|
321
|
305
|
102
|
102
|
254
|
200
|
160
|
230
|
89
|
6
|
150
|
403
|
419
|
457
|
152
|
152
|
318
|
250
|
203
|
305
|
170
|
8
|
200
|
502
|
517
|
521
|
203
|
203
|
381
|
278
|
232
|
390
|
270
|
10
|
250
|
568
|
584
|
559
|
254
|
254
|
445
|
333
|
29.8
|
477
|
460
|
12
|
300
|
648
|
664
|
635
|
305
|
305
|
520
|
360
|
333
|
540
|
750
|
14
|
350
|
762
|
778
|
762
|
337
|
337
|
585
|
395
|
350
|
630
|
1000
|
16
|
400
|
838
|
854
|
838
|
387
|
387
|
650
|
433
|
398
|
698
|
1430
|
18
|
450
|
914
|
930
|
914
|
438
|
438
|
710
|
460
|
410
|
770
|
1790
|
20
|
500
|
991
|
1010
|
991
|
489
|
489
|
775
|
505
|
470
|
855
|
2400
|
22
|
550
|
1092
|
1114
|
1092
|
540
|
540
|
840
|
530
|
485
|
940
|
2980
|
24
|
600
|
1143
|
1165
|
1143
|
591
|
591
|
915
|
590
|
550
|
1025
|
3550
|
26
|
650
|
1245
|
1270
|
1245
|
635
|
635
|
970
|
635
|
585
|
1085
|
4300
|
28
|
700
|
1346
|
1372
|
1346
|
686
|
686
|
1035
|
645
|
670
|
1150
|
5600
|
30
|
750
|
1397
|
1422
|
1397
|
736
|
736
|
1090
|
700
|
730
|
1240
|
6800
|
32
|
800
|
1524
|
1553
|
1524
|
781
|
781
|
1150
|
750
|
770
|
1320
|
8100
|
34
|
850
|
1626
|
1654
|
1626
|
832
|
832
|
1205
|
765
|
800
|
1393
|
9300
|
36
|
900
|
1727
|
1756
|
1727
|
876
|
876
|
1270
|
810
|
825
|
1450
|
10500
|
40
|
1000
|
1956
|
-
|
1956
|
978
|
978
|
1240
|
905
|
920
|
1620
|
13500
|
42
|
1050
|
2083
|
-
|
2083
|
1022
|
1022
|
1290
|
960
|
955
|
1690
|
16000
|
48
|
1200
|
2170
|
-
|
21740
|
1168
|
1168
|
1465
|
1100
|
1105
|
1943
|
20000
|
56
|
1400
|
2743
|
-
|
2743
|
1384
|
1384
|
1710
|
1300
|
1275
|
2280
|
38170
|
600lb
|
2
|
50
|
292
|
295
|
292
|
51
|
51
|
165
|
105
|
100
|
160
|
35
|
3
|
80
|
356
|
359
|
356
|
77
|
77
|
210
|
165
|
130
|
190
|
80
|
4
|
100
|
432
|
435
|
432
|
102
|
102
|
273
|
210
|
162
|
234
|
140
|
6
|
150
|
559
|
562
|
559
|
152
|
152
|
356
|
253
|
203
|
305
|
277
|
8
|
200
|
660
|
664
|
660
|
203
|
203
|
419
|
290
|
257
|
405
|
480
|
10
|
250
|
787
|
791
|
787
|
254
|
254
|
510
|
330
|
310
|
490
|
800
|
12
|
300
|
838
|
841
|
838
|
305
|
305
|
560
|
380
|
350
|
580
|
1120
|
14
|
350
|
889
|
892
|
889
|
337
|
337
|
605
|
395
|
360
|
630
|
1350
|
16
|
400
|
991
|
994
|
991
|
387
|
387
|
685
|
433
|
413
|
702
|
1860
|
18
|
450
|
1092
|
1095
|
1092
|
438
|
438
|
745
|
470
|
430
|
775
|
2400
|
20
|
500
|
1194
|
1200
|
1194
|
489
|
489
|
815
|
505
|
490
|
863
|
3100
|
22
|
550
|
1296
|
1305
|
1296
|
540
|
540
|
870
|
548
|
510
|
950
|
4000
|
24
|
600
|
1397
|
1406
|
1397
|
591
|
591
|
940
|
595
|
570
|
1030
|
5000
|
26
|
650
|
1148
|
1460
|
1448
|
635
|
635
|
1015
|
635
|
620
|
1093
|
6000
|
28
|
700
|
1549
|
1562
|
1549
|
686
|
686
|
1075
|
665
|
690
|
1170
|
7500
|
30
|
750
|
1651
|
1664
|
1651
|
736
|
736
|
1130
|
710
|
750
|
1255
|
9300
|
32
|
800
|
1778
|
1794
|
1778
|
781
|
781
|
1195
|
755
|
780
|
1327
|
11000
|
34
|
850
|
1930
|
1946
|
1930
|
832
|
832
|
1245
|
780
|
815
|
1405
|
1330
|
36
|
900
|
2083
|
2098
|
2083
|
876
|
876
|
1315
|
815
|
840
|
1465
|
15600
|
40
|
1000
|
2337
|
2337
|
2337
|
978
|
978
|
1320
|
915
|
940
|
1640
|
20800
|
42
|
1050
|
2437
|
2437
|
2437
|
1022
|
1022
|
1405
|
970
|
980
|
1720
|
23000
|
48
|
1200
|
2540
|
2540
|
2540
|
1168
|
1168
|
1595
|
1105
|
1120
|
1970
|
27000
|
56
|
1400
|
2949
|
2949
|
2949
|
1384
|
1384
|
1855
|
1300
|
1290
|
2305
|
47490
|
900lb
|
2
|
50
|
368
|
371
|
368
|
51
|
51
|
216
|
105
|
105
|
160
|
75
|
3
|
80
|
381
|
384
|
381
|
77
|
77
|
241
|
165
|
130
|
190
|
100
|
4
|
100
|
457
|
460
|
457
|
102
|
102
|
292
|
210
|
167
|
237
|
160
|
6
|
150
|
610
|
613
|
610
|
152
|
152
|
381
|
260
|
210
|
320
|
350
|
8
|
200
|
737
|
740
|
737
|
203
|
203
|
470
|
295
|
266
|
420
|
645
|
10
|
250
|
838
|
841
|
838
|
254
|
254
|
545
|
345
|
330
|
515
|
1000
|
12
|
300
|
965
|
968
|
965
|
305
|
305
|
610
|
390
|
380
|
605
|
1500
|
14
|
350
|
1029
|
1038
|
1029
|
324
|
324
|
640
|
400
|
370
|
640
|
1900
|
16
|
400
|
1130
|
1140
|
1130
|
375
|
375
|
705
|
440
|
435
|
715
|
2600
|
18
|
450
|
1219
|
1232
|
1219
|
425
|
425
|
785
|
482
|
500
|
800
|
3100
|
20
|
500
|
1321
|
1333
|
1321
|
475
|
473
|
855
|
530
|
500
|
900
|
4300
|
22
|
550
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
24
|
600
|
1549
|
1568
|
1549
|
571
|
571
|
1040
|
615
|
630
|
1060
|
7100
|
26
|
650
|
1651
|
1674
|
1651
|
619
|
619
|
1085
|
650
|
650
|
1120
|
9600
|
28
|
700
|
1753
|
1775
|
1753
|
667
|
667
|
1170
|
670
|
710
|
1230
|
12000
|
30
|
750
|
1880
|
1902
|
1880
|
714
|
714
|
1230
|
7252
|
780
|
1300
|
15000
|
32
|
800
|
2032
|
2054
|
2032
|
762
|
762
|
1315
|
785
|
810
|
1360
|
18000
|
34
|
850
|
2159
|
2188
|
2159
|
810
|
810
|
1395
|
805
|
850
|
1470
|
21000
|
36
|
900
|
2286
|
2315
|
2286
|
857
|
857
|
1460
|
845
|
900
|
1530
|
24000
|
1500lb
|
2
|
50
|
368
|
371
|
368
|
51
|
51
|
216
|
105
|
105
|
160
|
80
|
3
|
80
|
470
|
473
|
470
|
77
|
77
|
267
|
165
|
130
|
190
|
150
|
4
|
100
|
546
|
549
|
546
|
102
|
102
|
311
|
215
|
167
|
245
|
250
|
6
|
150
|
705
|
711
|
705
|
146
|
146
|
394
|
260
|
230
|
345
|
520
|
8
|
200
|
832
|
841
|
832
|
194
|
194
|
483
|
300
|
285
|
450
|
845
|
10
|
250
|
991
|
1000
|
991
|
241
|
241
|
585
|
365
|
350
|
555
|
1600
|
12
|
300
|
1130
|
1146
|
1130
|
289
|
289
|
675
|
420
|
423
|
710
|
2000
|
14
|
350
|
1257
|
1276
|
1257
|
317
|
317
|
750
|
440
|
430
|
770
|
2800
|
16
|
400
|
1384
|
1406
|
1384
|
362
|
362
|
825
|
480
|
500
|
850
|
3800
|
18
|
450
|
1537
|
1559
|
1537
|
407
|
407
|
916
|
550
|
600
|
980
|
5000
|
20
|
500
|
1664
|
1686
|
1664
|
457
|
457
|
985
|
620
|
650
|
1020
|
6500
|
22
|
550
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
24
|
600
|
2043
|
2071
|
2043
|
534
|
534
|
1170
|
700
|
720
|
1290
|
10000
|
Chiar și fișa tehnică a fost citită de echipa noastră de ingineri. Cu toate acestea, greșelile neprevăzute în timpul aportului manual nu sunt excluse. Această foaie nu a putut fi folosită ca document executabil. Pentru asistența tehnică, vă rugăm să ne trimiteți specificațiile dvs. prin e -mail. Inginerii noștri vor desena desenele conform specificațiilor dvs.
Vă sugerăm să salvați această pagină în favoritele browserului dvs. în caz de nevoie în viitor. Orice informații suplimentare vă rugăm să contactați pentrusales@gntvalve.com
